Name: Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications
Brand: Gnee Steel (tianjin) Co., Ltd
Price: 399.30 USD
Availability: InStock

Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications

Большие изображения : Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications

Подробная информация о продукте:

Фирменное наименование:	Gnee

Оплата и доставка Условия:

Количество мин заказа:	2 шт.
Упаковывая детали:	Крепление металлическим ремнем. Упаковка поддоном, внешняя упаковка водонепроницаемой пластиковой пл
Время доставки:	Отправлено через 20 дней после оплаты
Поставка способности:	300000 квадратных метров/квадратных метров в месяц

контакт

Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications

описание

Выделить:

Hot Dipped Galvanized Steel Grating

Customizable Sizes Bar Grating

High Load-Bearing Metal Grating

Factory Customized Steel Grating Solutions

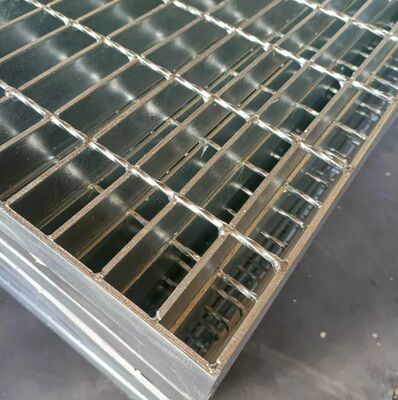

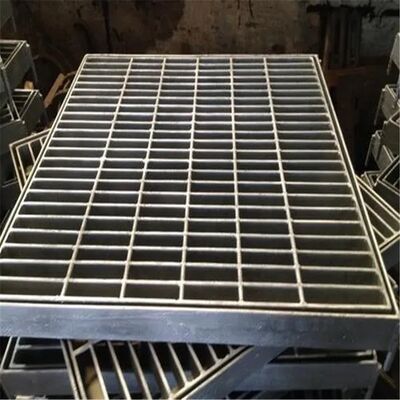

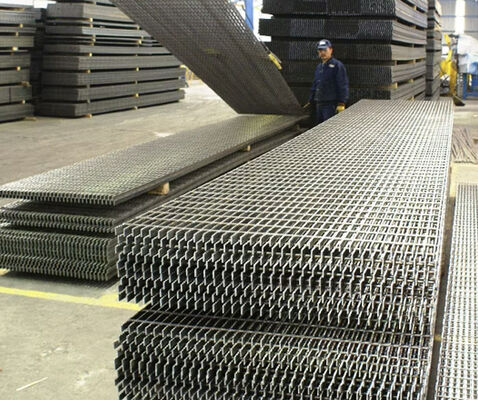

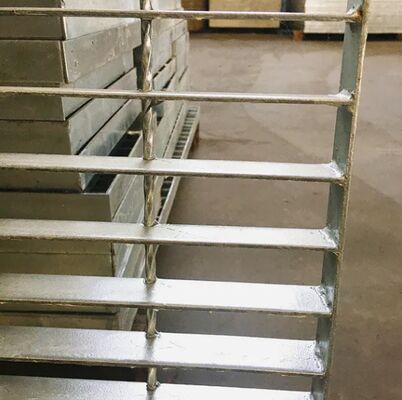

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed to hold heavy loads with minimal weight. The bearing bars, running in one direction, are spaced by rigid attachment to cross bars running perpendicular to them. This versatile product is widely used as floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in industrial settings including factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.

Product Specifications

Product Name	Steel Bar Grating
Material	Mild Steel (Low Carbon Steel), S235, S275JR, A36, Stainless Steel SS304, SS316, Aluminum 3003, 5052
Surface Treatment	Hot dipped galvanized, polished, or untreated
Bearing Bar (Width x Thickness)	25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, 75x10mm
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm US standard: 1"x3/16", 1¼"x3/16", 1½"x3/16", 1"x¼", 1¼"×¼", 1½"x¼" etc.
Cross Bar Pitch	38, 50, 76, 100, 101.6mm or customized

Standard Grating Specifications

Bearing Bar: 20×3 to 60×5

Bearing Bar Pitch	Cross-bar Pitch	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50

Applications

Working Platforms
Handrail Infill
Walkways
Bridge Decking
Stair Treads
Transformer Reservoir
Trench Covers
Ceiling Systems
Grating Fence
Sunshade Panels
